GUI calculator in C using RPN and GTK

From Switch-Case to Signals: My Journey Building a GTK Calculator in C

I have been brushing up my C concepts through The C language course by PyjamaBrah. In one of the sections, Piyush showed a basic CLI calculator that used a switch-case to evaluate the result of two operands and an operator.

Here’s what it looked like:

scanf("%f", &input1);
scanf("%f", &input1);
scanf("%c", &op);
switch (op){
	case '-':
		....
	case '+':
		...
	case '*':
		...
	case '/':
		...
}

Of course, this was just meant to demonstrate switch. So ..

No input validation (wrong input? crash.)
And definitely no support for full expressions like 3 + 5 * 2
Only decimal and floating point calculations

That got me thinking: how big is the gap between this and a basic GUI calculator?

Goals: What I Wanted My Calculator to Do

Before diving into code, I set some ground rules. My calculator should:

Handle full expressions using BODMAS
Gracefully handle invalid inputs
Have a working GUI
Be modular enough to add new operators easily in the future

Expressions, RPN & Shunting Yard

If you look up how calculators handle expression parsing, you’ll quickly run into a few terms:

Infix (e.g., 3 - 5 / 2) — what humans use
Postfix aka Reverse Polish Notation (RPN) (e.g., 3 5 2 / -) — what computers prefer
Shunting Yard Algorithm — invented by Dijkstra, used to convert infix to postfix

Why postfix? Because it lets you evaluate expressions without worrying about parentheses or operator precedence — you just process the tokens left to right using a stack.

If you’ve never heard of this, this video explains it well. Comp Sci in 5: Shunting Yard Algorithm - YouTube

Structs, Enums, and Stacks — Building the Engine

To implement all this in C, I needed to mimic:

A stack for operators
A queue for output
And a way to represent both operands and operators using enum + struct

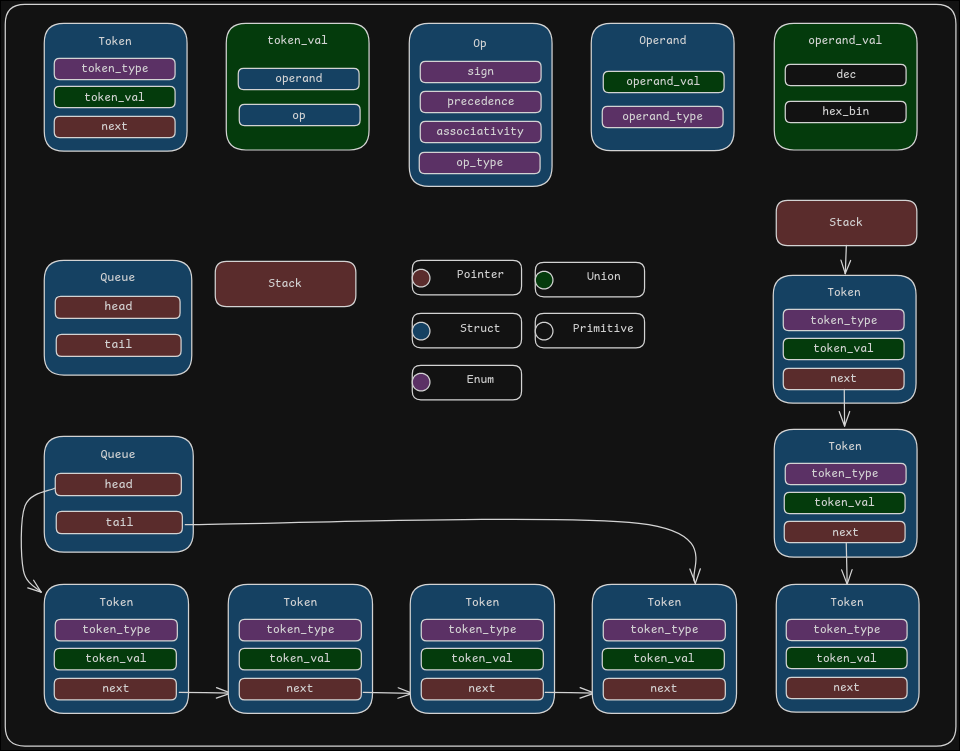

Here’s the rough structure of the core:
core structure

With the tokenizer, RPN creator, and evaluator in place, I now had a CLI-based calculator that could handle proper math expressions.

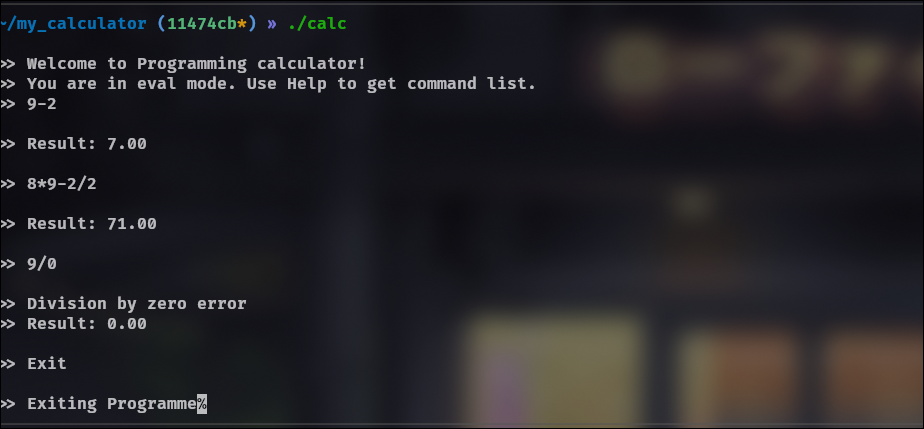

Here's the first working version:
Initial program

Next Step: A GUI

I’ve never built GUI apps before, but I wanted something that felt “real.” I checked how GNOME Calculator worked and saw it used GTK. That seemed like a good path to follow.

So I installed GTK and started playing around.

Designing the UI: Glade to the Rescue

GTK lets you build UIs in two ways:

Manually create widgets in C
Use a UI definition file (.ui) written in XML

Even a simple calculator UI can get bloated fast. Creating each button and setting its properties in C would be a nightmare. So I used Glade — a drag-and-drop GUI builder that outputs ui.glade files for GTK.

Here’s what the initial UI skeleton looked like:
Initial program

Connecting Logic to UI

Once the layout was ready, I had to:

Load the .ui file using GtkBuilder
Connect buttons and keyboard inputs to callback functions
Wire up input/output using GtkEntry and GtkTextView

At this point, the UI was interactive but didn't actually evaluate anything.

Hooking Up the Backend

Now came the cool part: plug the CLI logic into the GUI.

Instead of reading from stdin, the evaluator now takes input from the GtkEntry when the user presses = or hits Enter. If the input is valid, we show the result in the same entry. If it’s not, the error goes to a GtkTextView.

Everything else stayed pretty much the same — just more visual.

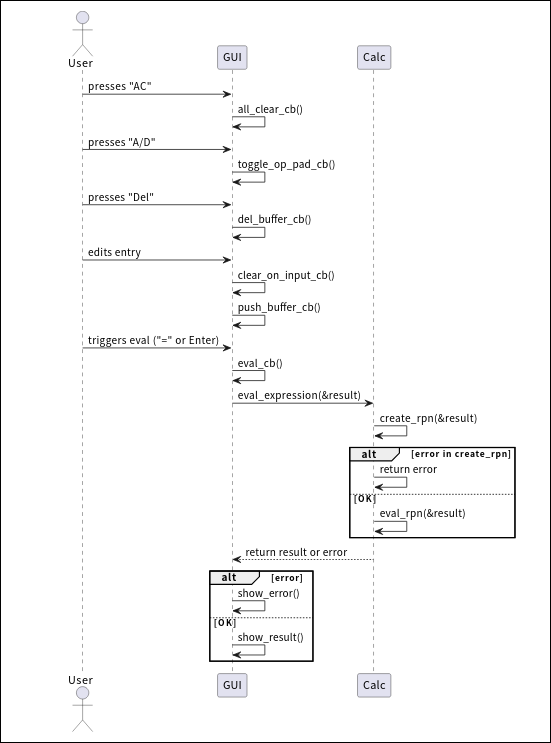

Final Overview

Here’s how the calculator works under the hood:
Initial program

What I Learned

You can mimic OOP's concepts using structs, function pointers and opaque types.
Even though frameworks like GTK abstract away large part of GUI development, it's still complicated due to how elements interact with each other.
Spending some time to setup debug logs, and build automation (makefile/Cmake) saves a ton of time in long run.
Valgrind makes Segfualts feel less painful.

Possible Next Steps

Add expression history
Fix memory leaks that I ignored

For anyone interested here's link to source code
